Product Name: S32205 Duplex Steel Heat Exchanger Tube

Product Attributes

Model No.Duplex Steel Heat Exchanger Tube

BrandCNMAX

TypeStainless Steel Pipes

StandardEN

Grade300 Series

CertificationASTM

ShapeRound

TechniqueCold Rolled And Cold Drawn

Surface TreatmentPickling

Supply Ability & Additional Information

Packagingplywood case packing

Productivity400 Ton/month

TransportationOcean,Land,Air

Place of OriginChina

Supply Ability500 Ton/month

CertificateISO

HS Code7304419000

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF,FCA,CPT

Packaging & Delivery
Selling Units:
Ton
Package Type:
plywood case packing



S32205/S31803/1.4462 Duplex Steel Heat Exchanger Tube or Boiler Tube

CNMAX is a professional manufacturer of small tubings in China, with the capacity of nearly 300 tons per month. We can supply our customer products with high quality and competitive price.



Product Description



Product ItemTP316L Heat Exchanger Tubing, Seamless Tubing
Outer Diameter6.35-44.5mm(1/4”-1-3/4”)
Wall Thickness0.71-3.81mm(0.028”-0.15”)
Pipe SizeOD ( 6.35-44.5mm ) *WT ( 0.71-3.81mm ) *MAX. 30 Meters
Material Grade304/ 304L/ 316/ 316L/ 316Ti/ 321/ 309S/ 310S/S32205/S31803, etc
StandardASTM A269, ASTM A312, ASTM A213/A789/A790 etc

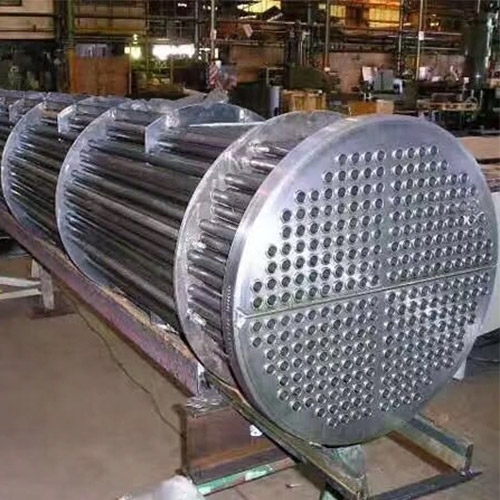

ApplicationHeat Exchanger, Boiler, etc
CertificateISO9001:2008, PED, BV
Process MethodCold Drawn/ Cold Rolled
Surface FinishAnnealed, Pickled
PackageWoven bag and Wooden Case
Delivery Time20-60 Days after receiving the deposit (Normally according to the order quantity)
Price ItemFOB, CIF or as negotiation
PaymentT/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality RequirementMill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Main MarketEurope, Middle East, Southeast Asia, South America. etc

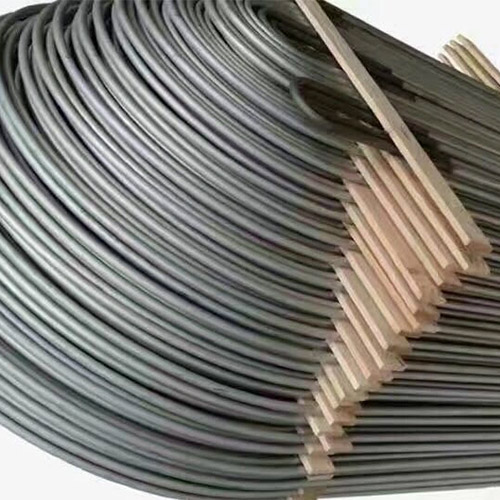

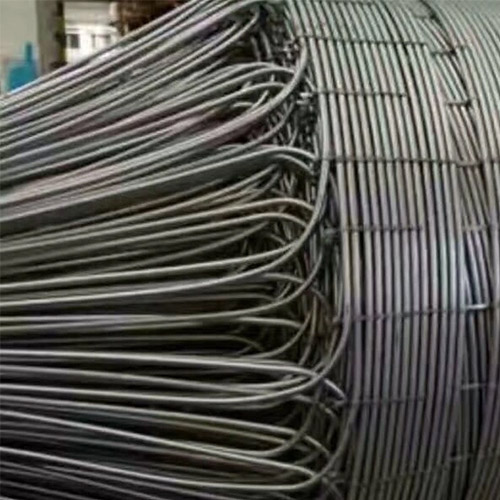

Stainless steel u bent tubes usually are supplied as boiler tubes

and heat exchanger tubes.

Heat Exchanger Tube materials

The tables show our standard materials for heat exchanger tube. Other grades can be offered on request.

Duplex stainless steels

ASTMEN no.W.-nrAFNOR
S315001.44241.4417Z2CND18-05-03
S31803/S322051.4462Z2CND22-05-03
S323041.43621.4362Z2NC23-04AZ
S32707
S327501.4410
ASTMEN steel no.W.-nrAFNOR
S30403/S30400304L/3041.4306/1.43011.4306/1.4301Z2CN18-10
S31603/S31600316L/3161.4435/1.44361.4435/1.4436Z2CND17-13
S31635316Ti1.45711.4571(Z6CNDT17-12)**
S32100/S32109321/321H1.4541/1.49401.4541/1.4878(Z6CNT18-10)**
S32205 Duplex Steel Heat Exchanger Tube
S32205 Duplex Steel Heat Exchanger Tube
