Model No.: 19×1.65
Type: Stainless Steel Pipes
Grade: 300 Series
Technique: Cold Drawn
Surface Treatment: Pickled
Supply Ability & Additional Information
Packaging: plywood case packing
Productivity: 400 Ton/month
Place of Origin: China
Supply Ability: 500 Ton/month
HS Code: 7304419000
Payment Type: L/C,T/T,D/P
Packaging & Delivery
Selling Units:Metric TonPackage Type:plywood case packing

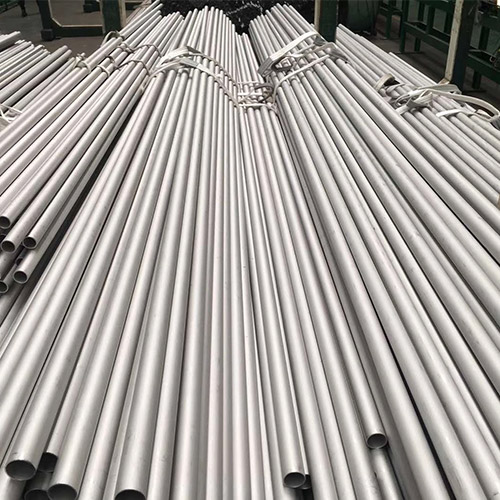

Max Stainless Steel could supply Heat Exchanger Tube in different Grades.
Production process: Cold rolled – cold drawn.
Heat treatment: Gas annealing.
Surface condition: Pickled.
Size: OD:6mm-610mm WT: 1mm-30mm.
Pipe standard size: Metric, Inch.
Material grade: TP304/304L; TP316/316L/316H/316Ti; TP310S; TP317/317L; TP321/321H; TP347/347H; S31803; s2205; S32750; S32760; 904L etc.
Production Standard: ASTM 312; GB/T14976-2012; ASTM 269; ASTM 213; ASTM789; ASTM 790; EN10216; GB13296 etc.
Length: As per customer`s requirement.
Quality control: 100%PMI – Eddy current – Hydraulic Test.
Packing: Each piece capped and then weaving bags packing in bundles.
Products are widely used in petroleum, chemical, pharmaceutical, biological, food, paper, electricity, shipbuilding, environmental protection, power plants and other projects pipeline
Heat exchanger Tube | Pipe and Tube Bender | U Tube heat exchanger | U bend Stainless Steel Tube | ASTM A556M | [U” Bent Cold Drawn Stainless Steel Tube | Bend Testing | Bend Tubing Happens | Bending Stainless Steel
|Grade(UNS):||Austenitic Stainless Steel:|
304/304L/304H(1.4301/1.4306/1.4948); 316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S (1.4833); 310S(1.4845); 317L(1.4438)321H(1.4878); 347H (1.4550);
Duplex Stainless Steel:
S32001, S32003, S31500, 2205(1.4462); S32304,(1.4362);S31803,2507 (S32750), S32760(1.4501);S32101(1.4162);
Super Austenitic Stainless Steel: 904L, S30432, S31042, 6Mo (S31254, N08367)
Nickel Base Alloys:
Alloy 20 (UNS N08020), Monel 200 (UNS 02200), Monel 400 (UNS N04400), Incoloy 800 (UNS N08800), Incoloy 800H (UNS N08810), Incoloy 800HT (UNS N08811), Incoloy 825 (UNS N08825), Inconel 600 (UNS N06600), 4J29, 4J36, GH3030, GH3039, C276 (UNS N10276)
Martensitic Stainless Steel:410(1.4006), 410S(1.4000), 420(1.4021)
Ferritic Stainless Steel:405(1.4002), 430(1.4016)
|Outside Diameter:||15.8 16.0 17.0 18.0 19.05 20.0 21.3 25.4 26.7 31.8 32.0 38.1mm|
|Wall Thickness:||1.24, 1.65, 2.0, 2.11, 2.77, 3.05mm etc|
|Standards (Norm):||EN 10216-5; DIN 17456, DIN 17458, DIN 2462, DIN 17455|
|GB/T14975; T14976; T13296; GB5310;|
|ASTM A213, A269, A312, A511, A789, A790, A928, A999, A1016, ASTM B161, ASTM B163, ASTM B165, ASTM B167, ASTM B338, ASTM B407, ASTM B423, ASTM B444,ASTM B619, ASTM B622, ASTM B626, ASTM B668, ASTM B677, ASTM B829|
|JIS G3459, JIS G3463, JIS G3446, JIS G3447, JIS G3448, JIS G3468|
|GOST 9940;GOST 9941;|
